Bayanan samfur
Abubuwan Samfuran
Alamar: Qiaolan
Wurin Asali: China
Matsayi: Sabo
Bayanin Bidiyo Na Bidiyo: Wanda aka bayar
Nau'in Tallace-tallace: Talakawa Samfura
Core Siyarwa: Tsawon Rayuwa
Bayar da Ability & Inarin Bayanai
Shigo: Ocean,Land,Air,Express
Wurin Bayani: China
Certificate: CE
HS Code: 8479109000
Port: ShenZhen
Nau'in Biyan kuɗi: L/C
Ba da fatawa: FOB
Bayanan samfur
Ko kana samar da sassan motoci, seederan masana'antu, ko kayan masu amfani da siliki, ruwa silicone allac din zai juyo da tsarin rauni. Experiendwarewar haɓakawa Ingantawa, Ingantaccen ingancin samfurin, da rage sharar tare da wannan ƙayyadadden injin-gyarawa.
Abubuwan kayan aiki:
1.Daut matsi na Hydraulc na'urar don tabbatar da daidaitaccen aiki.
2.DoBable ƙananan mutu Ejector ya dace da kayan samar da samfurori da yawa.
3. 3.Ka ke da tsarin gargajiya, skateboard yana da saurin sauri da matsin lamba mafi girma. Ya dace da samar da manyan kayayyaki masu yawa ..
4.Skateard zane: Tsarin ruwa mai sanyaya yana tabbatar da cewa skatebek yana motsa azumi kuma bashi da kuskure.

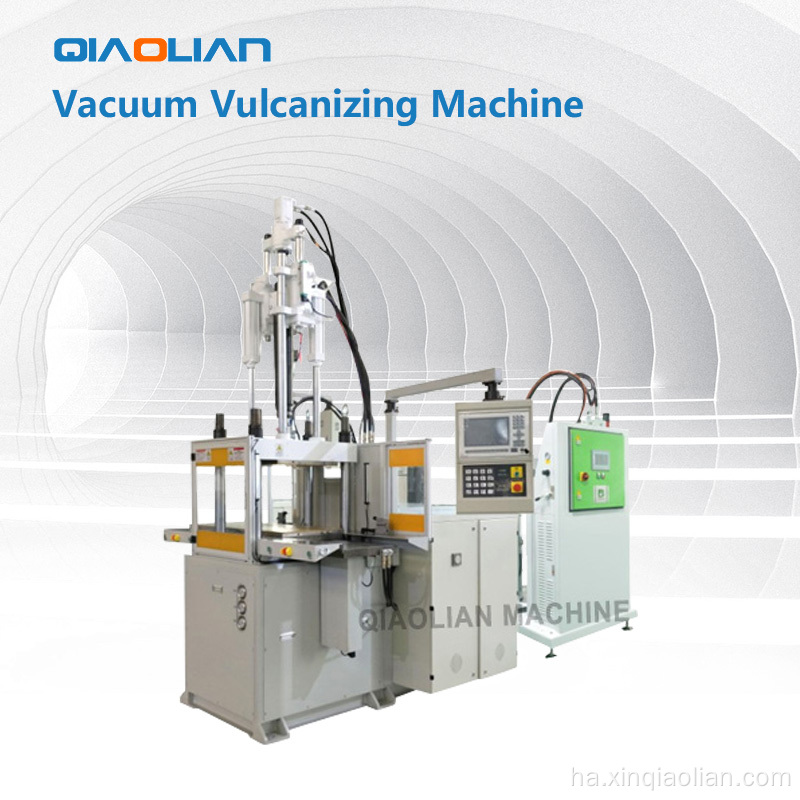

Aikin injin lantarki na fasali
Mayar da kayan adon ruwa na ruwa ya dace da manyan samfuran silica, kamar kayan aikin lantarki, kayan haɗin lantarki, kayan aikin lantarki, uwa. da samfuran yara, da sauransu.
Aikace-aikacen mashin na Vulcanizing
| Equipment model | V85SD-LSR | V120SD-LSR | V160SD-LSR | ||||||
|
Injection Device
|
Screw diameter (mm) | Φ18 | Φ25 | Φ28 | Φ40 | Φ45 | Φ50 | Φ50 | Φ55 |
| Theoretical output (cm3) | 29.2 | 56.4 | 70.7 | 176 | 223 | 314 | 392 | 475 | |
|
Maximum injection pressure Mpa(kgf/cm2) |
254 （2592） |
132 (1344) |
105 (1071) |
146 (1492) |
115 (1176) |
115 (1176) |
176 (1803) |
146 (1490) |
|
| Injection Rate (cm3/sec) | 71 | 137 | 172 | 173 | 219 | 220 | 220 | 266 | |
| Injection Speed (mm/s) | 280 | 280 | 280 | 138 | 138 | 112 | 112 | 112 | |
| Screw Speed r.p.m | 0-300 | 0-300 | 0-300 | ||||||
|
Size of nozzle protruding template (mm) |
≥45 | ≥45 | ≥45 | ||||||
|
Clamping Device
|
Clamping Force (T) | 85 | 120 | 160 | |||||
| Mold Closing Stroke(mm) | 250 | 280 | 300 | ||||||
| Minimum Mold Thickness(mm) | 170（270） | 220(320) | 234(334) | ||||||
| Maximum opening distance(mm) | 420（520） | 500(600) | 534(634) | ||||||
| Column Spacing(mm) | 658*335 | 760*380 | 860*420 | ||||||
| Maximum Mold Size(mm) | 500*475 | 580*540 | 640*630 | ||||||
| Skate Size(mm) | 1135*495 | 1290*560 | 1400*650 | ||||||
| Finished Product Ejection Distance(mm) | 75 | 75 | 95 | ||||||
| Ejection Force (T) | 2.7 | 4.6 | 4.6 | ||||||
|
other
|
System Pressure Mpa(kgf/cm2) | 13.7（140） | 13.7(140) | 13.7(140) | |||||
| Fuel Tank Capacity(L) | 280 | 340 | 415 | ||||||
| Power KW(HP) | 15(20) | 18.5(25) | 22.5(30) | ||||||
|
Mechanical Dimensions L*W*H(mm) |
2050*1700*2360(3028) | 2206*1980*2825(3645) | 2296*2410*3703(4603) | ||||||
| Mechanical Weight (T) | 3.5 | 5.9 | 9.1 | ||||||
| Notes | Double Cylinder SPII Nozzle Seat | ||||||||
Muna da 'yancin canza kowane zane kuma takamaiman ba tare da ontice ba.
